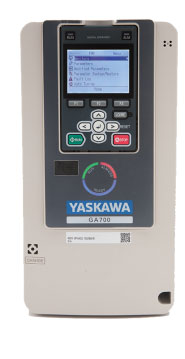

AC-Drive GA 700

  1. Home
  2. AC-Drive GA 700
High Performance Type General Purpose Drive:

  • GA700 ratings: 200 to 240 VAC, 0.55 to 110 kW
  • 380 to 480 VAC, 0.55 to 630 kW
  • One drive controlling any induction, permanent magnet or synchronous reluctance motor
  • Built in EMC filter, DC choke, braking chopper reduce panel space
  • Easy motor setup without the need for auto-tuning simplifies tuning with connected machinery
  • Effortless Network Integration by support of all major networks with cost effective gateway feature
  • Reduced set-up time with an intuitive keypad, navigation and start-up wizards
  • Keypad with automatic parameter backup function, real time clock, data logger and copy unit
  • Powerful DriveWizard PC tool for drive management, start-up, programming and failure analysis
  • DriveWorksEZ for programming tool for extending functionality by logic programming
  • Cloud-connected DriveWizard Mobile app for drive management on smartphones and tablets.
  • Convenient commissioning by programming without main power from PC or Android Smart Phone
  • Increased safety and reliability with built in STO SIL3 functional safety
  • Side-by-side and heatsink out the back mounting for minimum panel size and optimized cooling
  • Ambient temperature of 50 °C without derating (IP20), max 60°C with derating
  • Meets Global Standards
  • Compressor
  • Conveyor
  • Fan
  • HVAC
  • Pump
